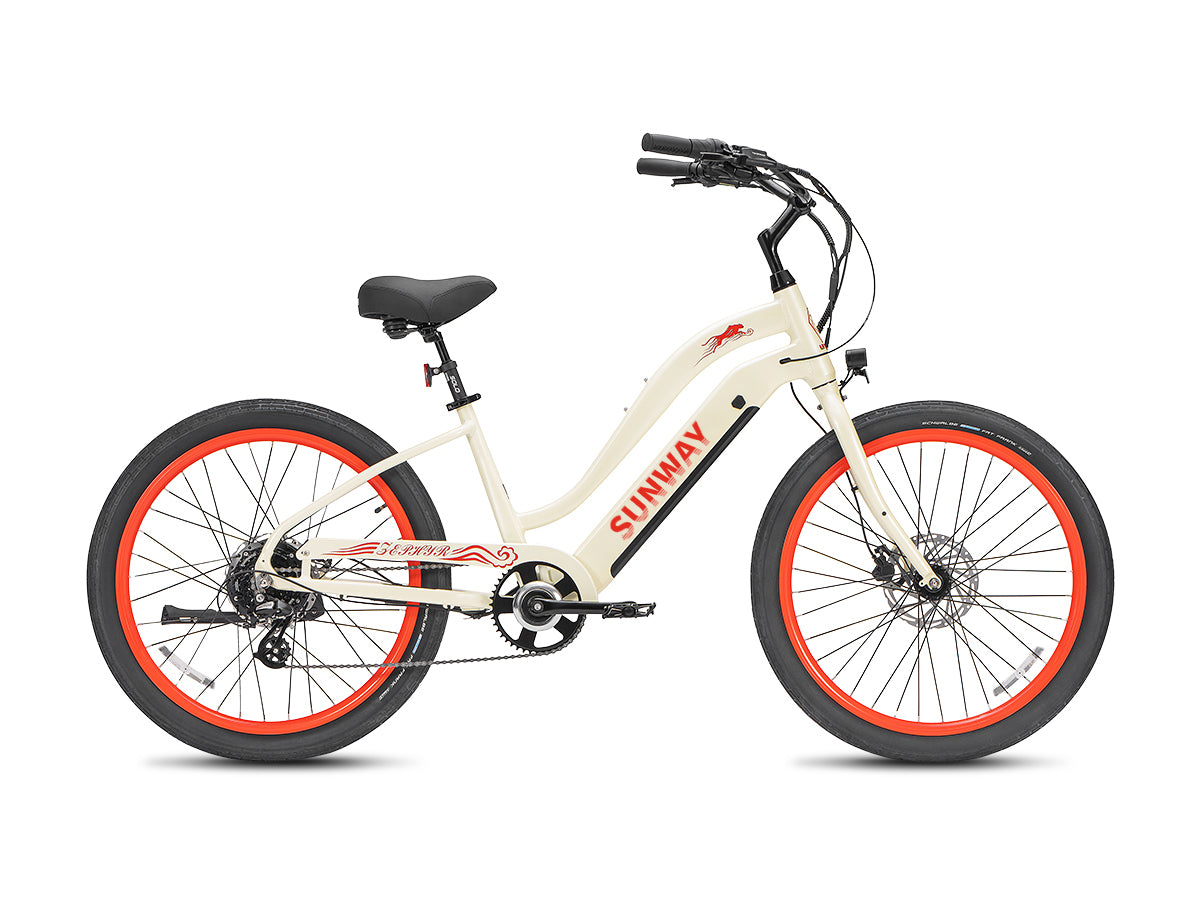

Zephyr ST Beach Cruiser Ebike
28 MPH
Top Speed
Top Speed
Up to 60 Miles
Range
Range
Motor Power
500W
500W

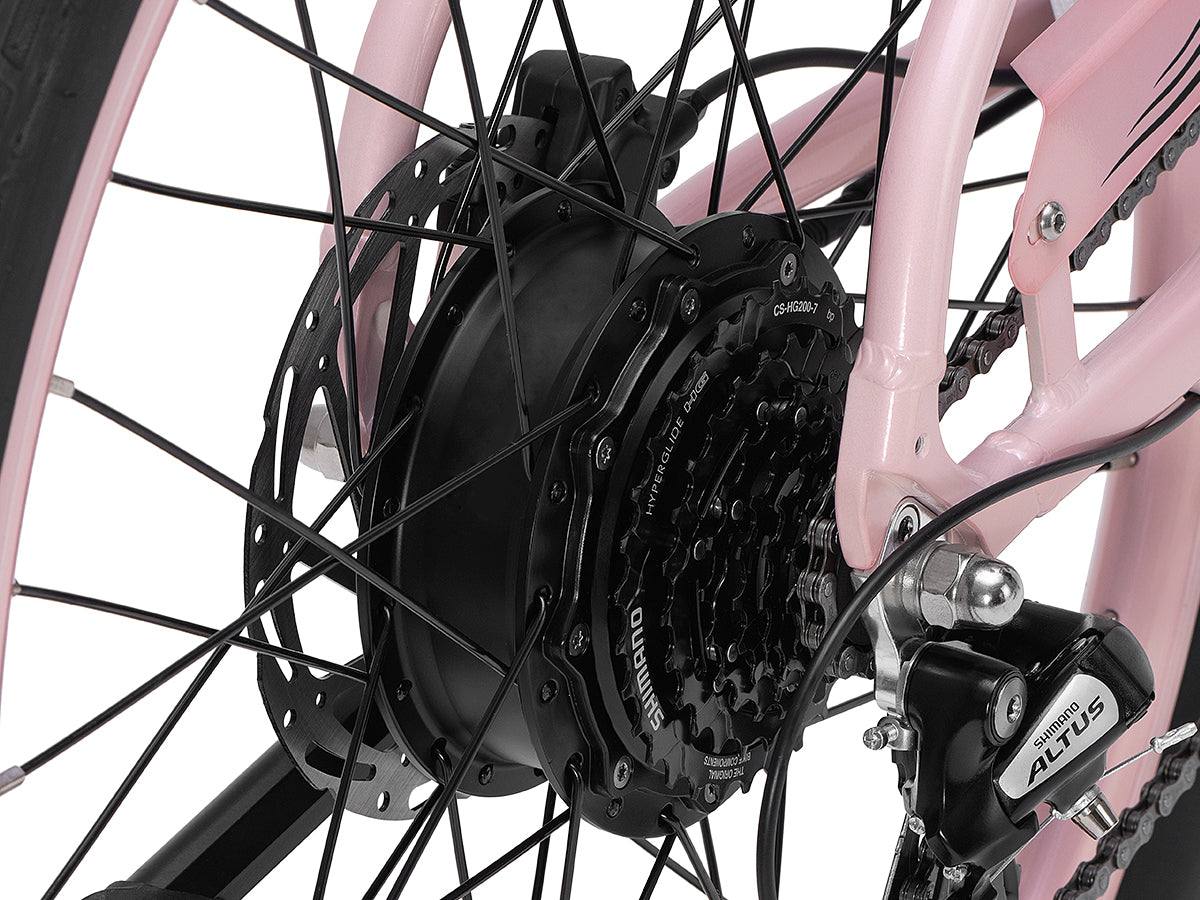

Motor:
M155 Hub, 48V 500W, 60Nm
M155 Hub, 48V 500W, 60Nm
Battery:
48V 15Ah (720Wh), UL 2271 / UL 2849
48V 15Ah (720Wh), UL 2271 / UL 2849
Charging Time:
About 5 Hours
About 5 Hours
PAS Sensor:
Cadence
Cadence
Display:
Color LCD, 5 Levels, Canbus
Color LCD, 5 Levels, Canbus
Frame:
Alloy Aluminum 6061 T4/T6
Alloy Aluminum 6061 T4/T6
Bike Weight:
58 lbs (Including Battery)
58 lbs (Including Battery)
Payload Capacity:
275 lbs
275 lbs
Rider Height:
5’3” – 6’5”
5’3” – 6’5”
Gearing:
Shimano 7 Speed
Shimano 7 Speed
Shifter:
7sp Trigger Lever
7sp Trigger Lever
Cassette:
Shimano CS-HG20-7, 12–32T
Shimano CS-HG20-7, 12–32T
Chainring:
Black 3-Piece Crank, 44T
Black 3-Piece Crank, 44T
Crank Arm:
Forged Aluminum 6.69"
Forged Aluminum 6.69"
Chain:
KMC HG40, 7sp, 122 Links
KMC HG40, 7sp, 122 Links

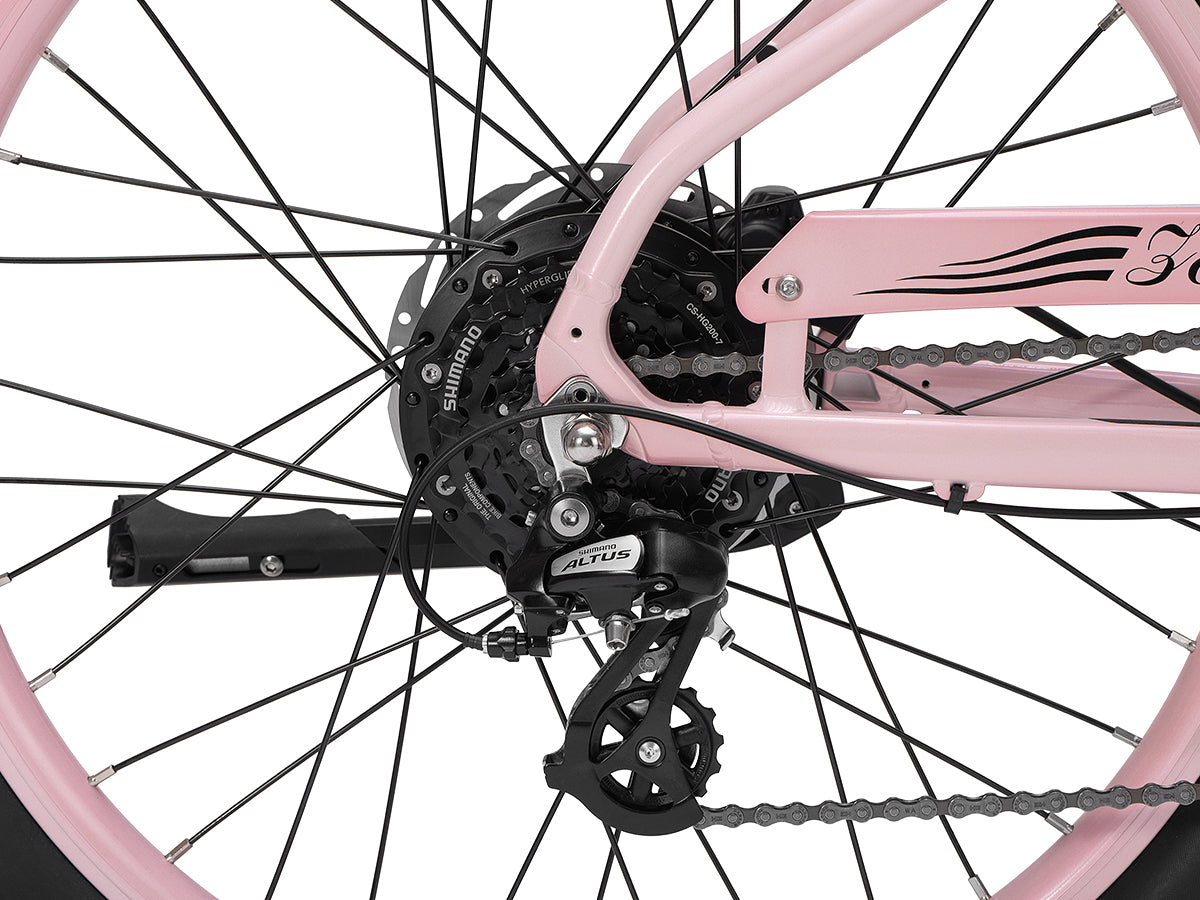

Derailleur:
Shimano RD-M310 7sp
Shimano RD-M310 7sp
Fork:
Steel Rigid Fork
Steel Rigid Fork
Handlebar:
Hi-Ten Steel, Cruiser Style
Hi-Ten Steel, Cruiser Style

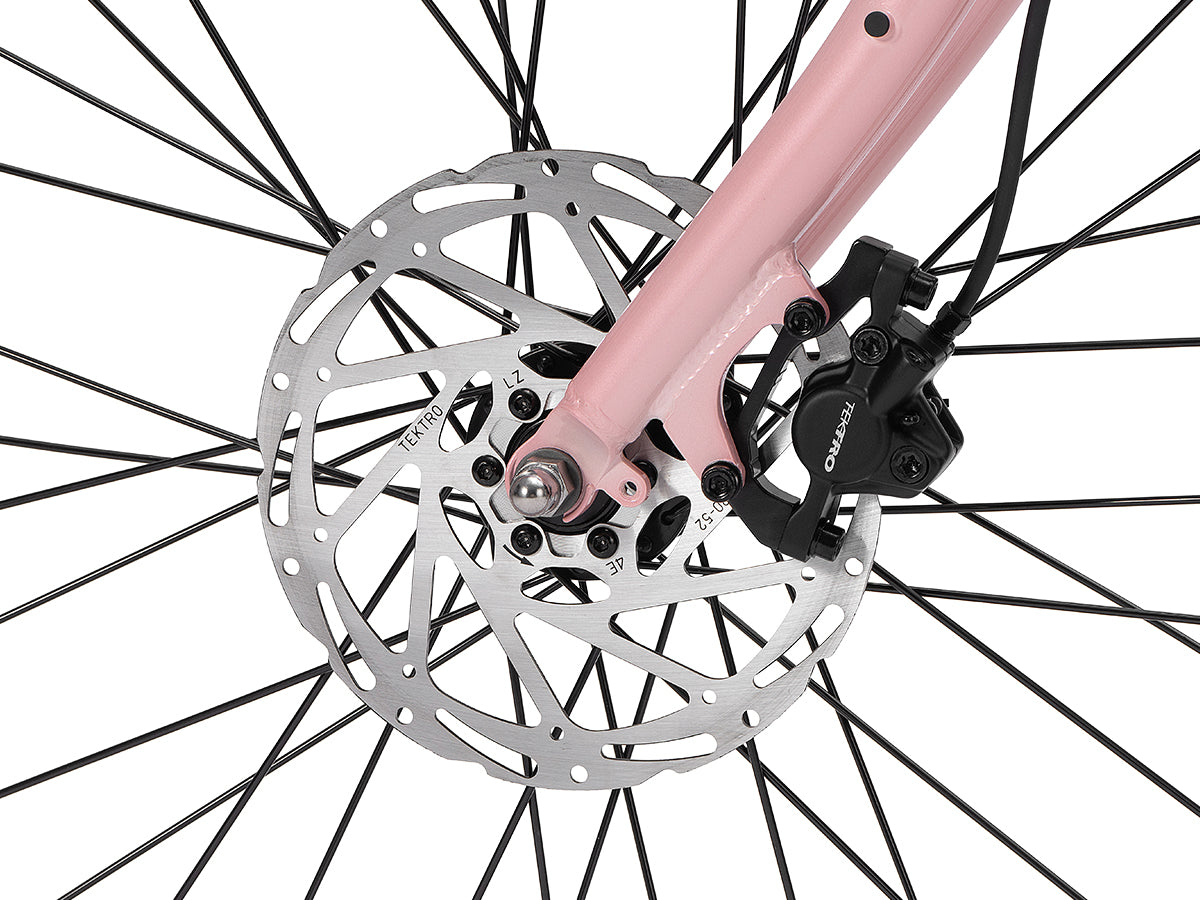

Brake Type:
Tektro Hydraulic Disc
Tektro Hydraulic Disc
Brake Levers:
Tektro w/ Power Cut Off Sensor
Tektro w/ Power Cut Off Sensor
Rotors:
180mm Stainless Steel (F/R)
180mm Stainless Steel (F/R)

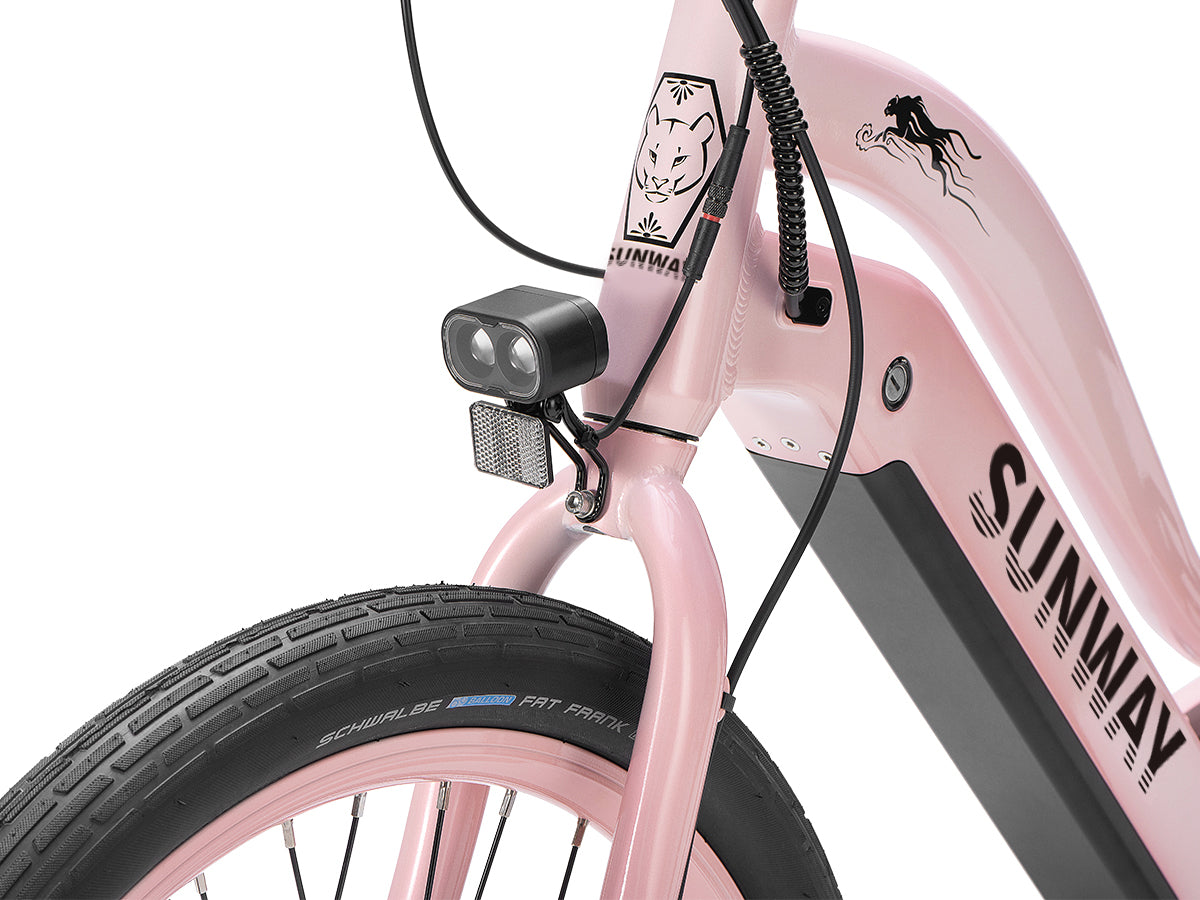

Front Light: 48V LED
Front Light: 48V LED
Front Light: 48V LED
Rear Light:
Optional
Optional
Tires:
Schwalbe Fat Frank, 26" × 2.35
Schwalbe Fat Frank, 26" × 2.35
Saddle:
Leoguar Cruiser Style Comfort Saddle
Leoguar Cruiser Style Comfort Saddle
Seatpost:
Suspension Type, 1.07" × 13.78"
Suspension Type, 1.07" × 13.78"
Kickstand:
Alloy Rigid Side
Alloy Rigid Side
