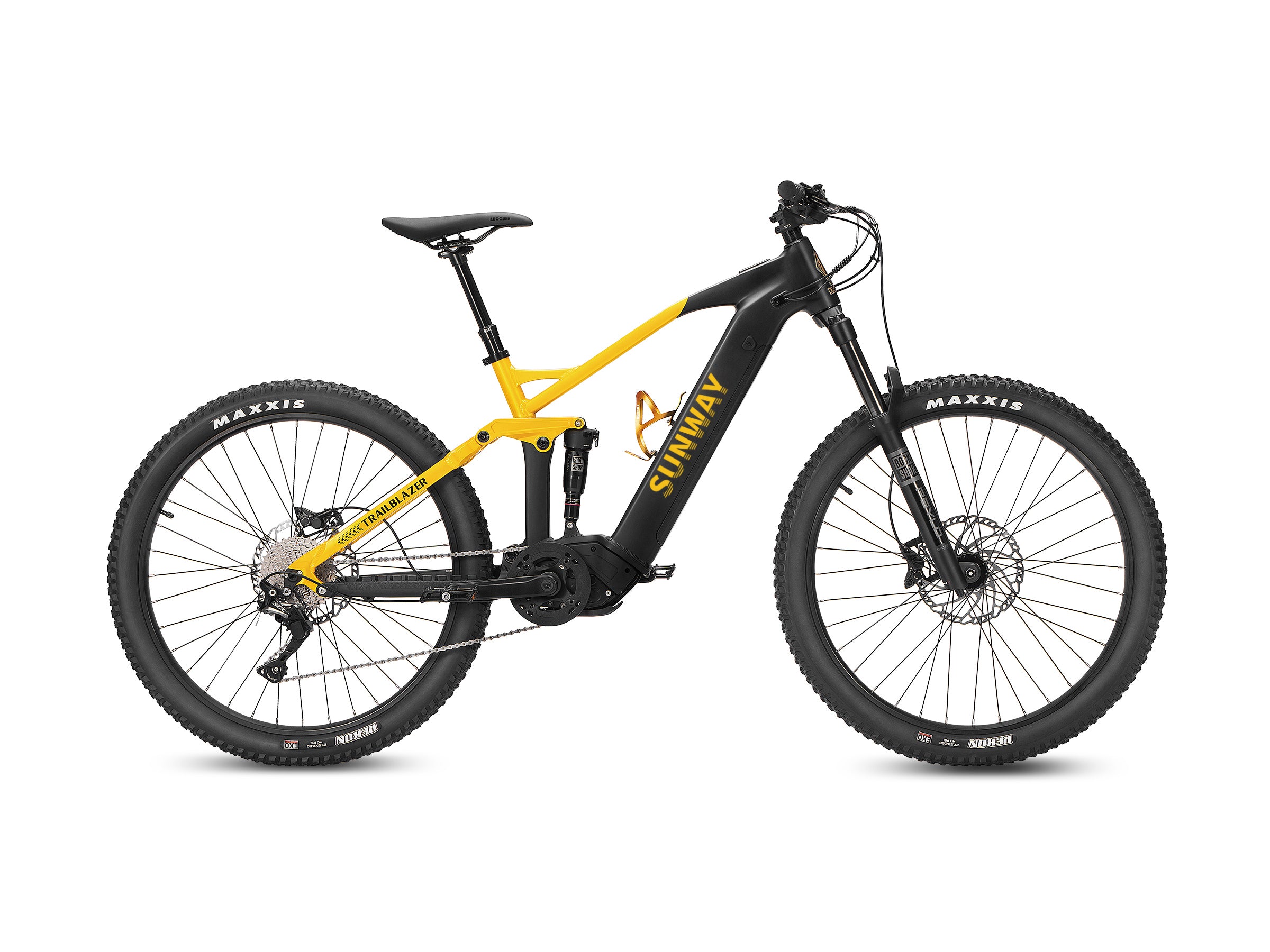

Trailblazer Mid-drive Motor EMTB

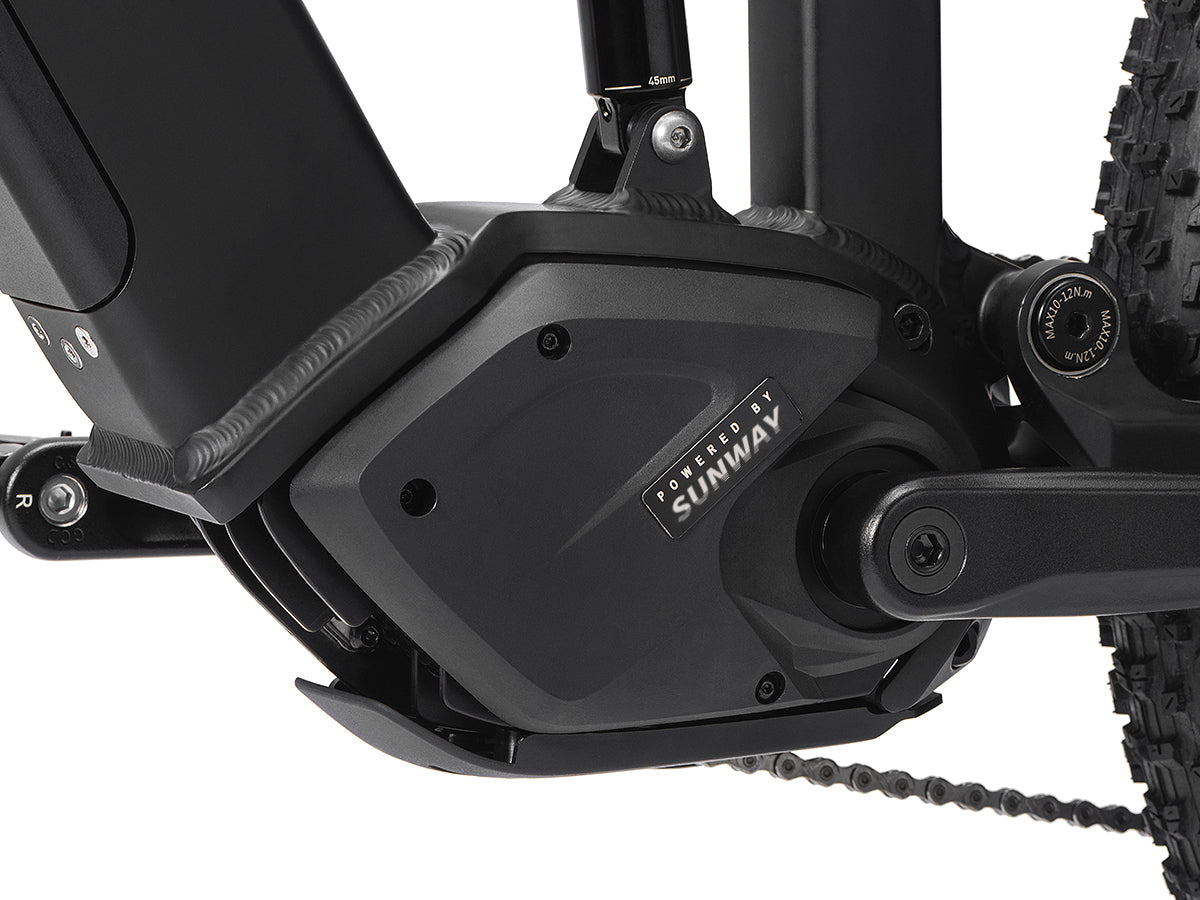

500W Mid-Drive Motor (Peak 750W) with 100Nm Torque

Delivers 100Nm of torque and peaks at 750W for powerful acceleration and climbing.

Mid-drive design ensures balanced handling and efficient power transfer.

Conquer steep hills and rugged trails with smooth, consistent performance.

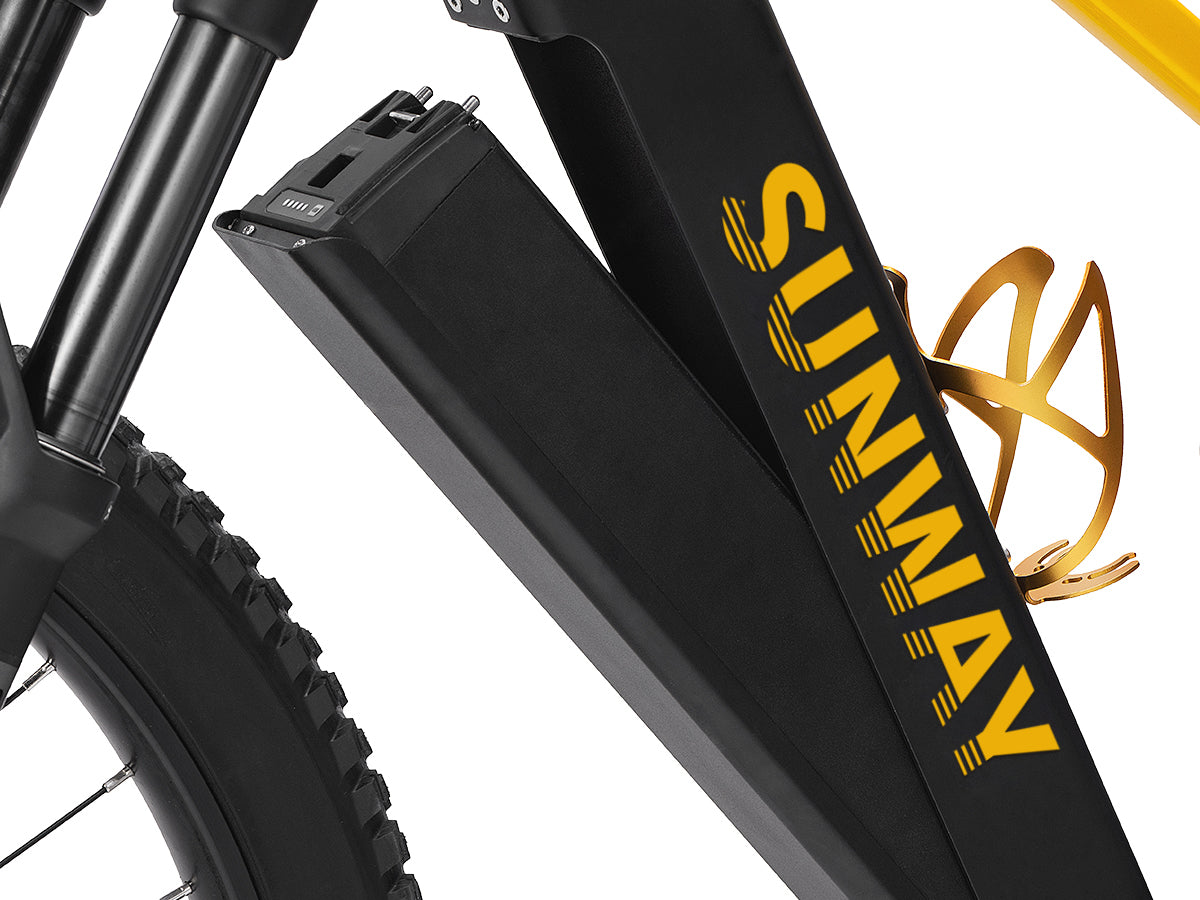

A Better Battery. A Smarter Power System.

UL 2271-certified 48V 15Ah battery delivers reliable power for every ride.

Dual-Lock design prevents theft and accidental drops with a clean in-frame fit.

Seamless wiring keeps the bike neat and weather-resistant in all conditions.

5 years Service Life
720Wh Capacity
Up to 100 Miles Range

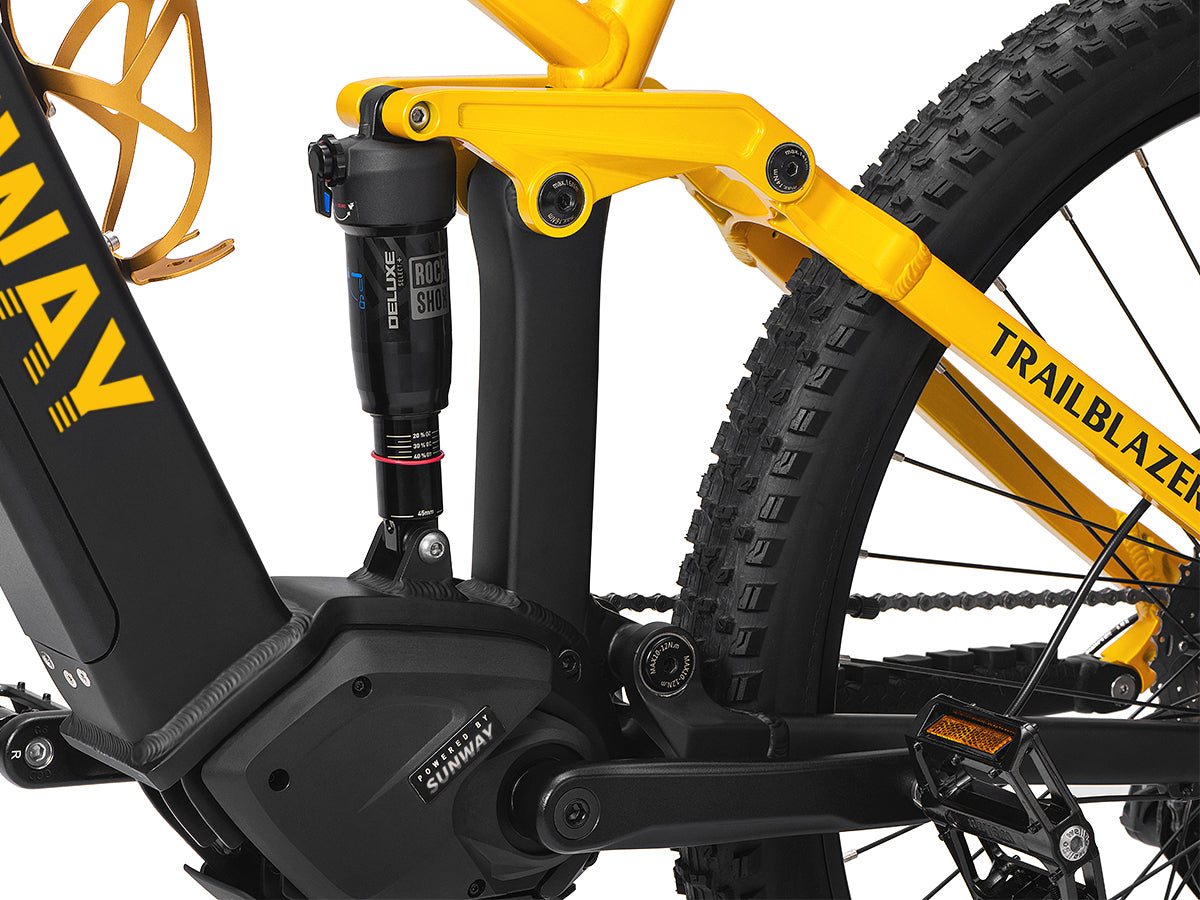

RockShox Rear Shock for Precision Damping

The Deluxe Select rear shock absorbs big hits and trail chatter with ease.

Adjustable rebound and DebonAir+ spring system provide customized comfort.

Tuned for aggressive off-road riding—keeping you stable, controlled, and comfortable on any terrain.

RockShox Front Suspension Fork

35mm air fork and Isolator RC damper offer reliable front-end control.

Adjustable compression, DebonAir springs, and rebound tuning for a personalized ride.

Provides excellent traction and a buttery-smooth feel across all terrains.

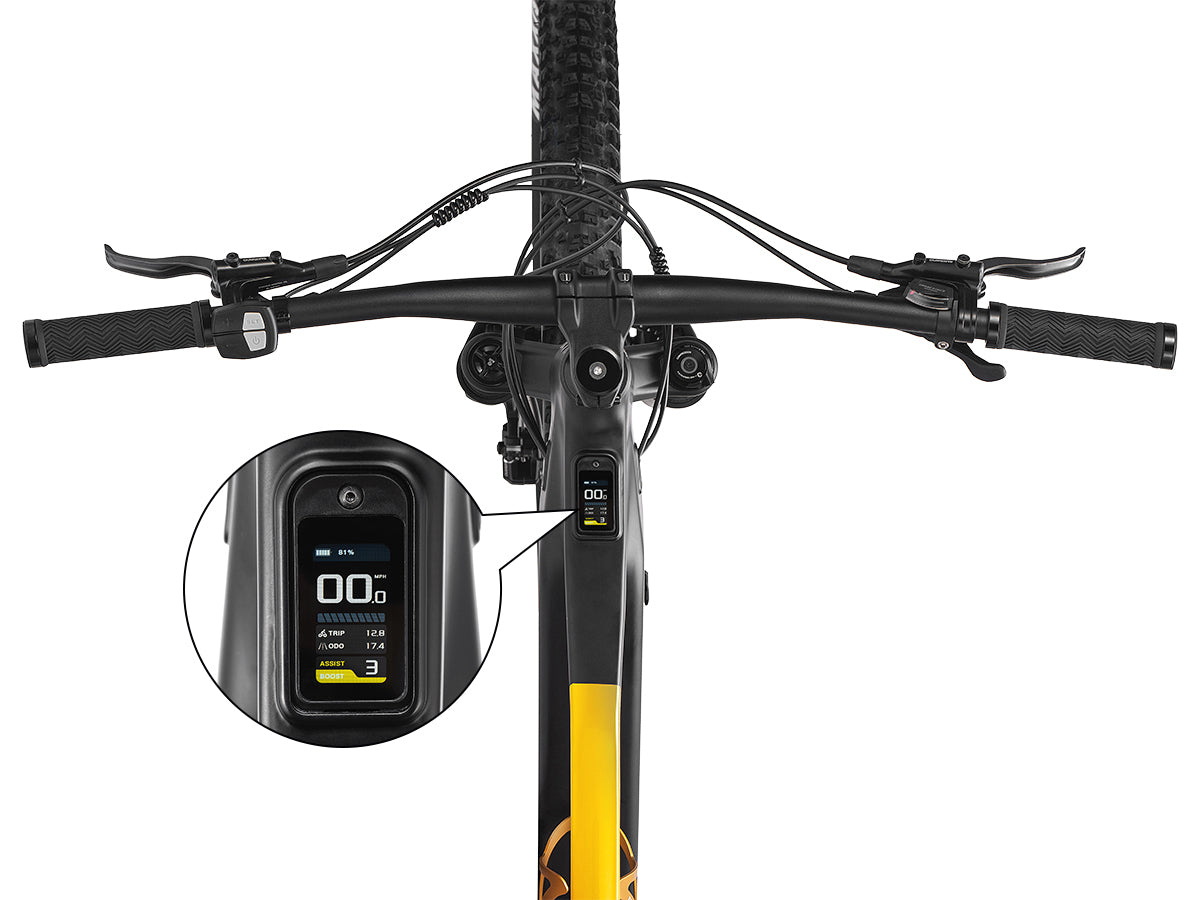

A Smarter Display. A Safer Ride.

Integrated top-tube color LCD display for a clean, modern look.

Real-time data shows speed, assist level, and battery life at a glance.

Built-in password protection enhances security and prevents unauthorized use.

Waterproof design ensures durability and reliable performance in all weather.

CANbus system enables error diagnosis and seamless communication between components.

28 MPH
Top Speed
Range
Up to 100 Miles
Motor Power
500W (Mid Drive, 100Nm)
Motor:
Mid Drive, 48V 500W, 100Nm
Battery:
48V 15Ah (720Wh), UL 2271 Certified
Charging Time:
About 5 Hours
PAS Sensor:
Torque Sensor
Display:
Top Tube Embedded Color
Frame:
6061 Alloy Aluminum T4/T6
Bike Weight:
55 lbs (Including Battery)
Payload Capacity:
275 lbs
Rider Height:
5’3” – 6’5”
Gearing:
Shimano 10 Speed
Shifter:
Shimano Deore 10 Speed
Cassette:
Shimano Deore, 11–36T
Chainring:
EP01A-MGT01-DG-CL47, 34T
Crank Arm:
MIA3 Alloy, 170mm L, 10°
Chain:
KMC X11, 10 Speed, 116 Links
Derailleur:
Shimano Deore KRD-M6000 SGS
Fork:
RockShox Suspension, 140mm Trave
Rear Shock:
RockShox Deluxe Select, 190x51mm
Brake Type:
Shimano, 4-piston Hydraulic Disc
Brake Levers:
Shimano BL-MT401 (L/R)
Rotors:
Front 203mm / Rear 180mm
Hubs:
Alloy, 15×110mm F / 148×12mm R
Pedals:
Double Bearing w/ Reflector
Tires:
MAXXIS Rekon 27.5×2.6", EXO
Saddle:
Leoguar Custom MTB Saddle
Seatpost:
Cable Remote Dropper, 125mm Travel
Handlebar:
Alloy Butted Bar
